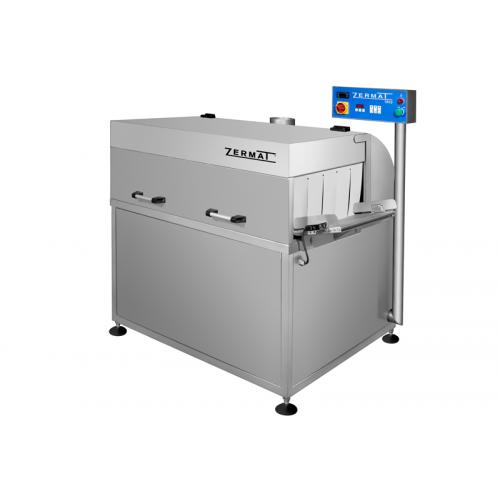

Zermat Shrink Tunnel TR-10
Machine with high capacity, automatic shrinking with continuous function.
The inner tape enters and submerges the products, ascends and extracts. Perfect for high productions.
Characteristics:
- Autonomous working system.
- Control panel with temperature selector and 20 programmable settings.
- Automatic water filling (water connection required).
- Sensor for the detection of bag entry.
- Programmable entry / immersion - eject times.

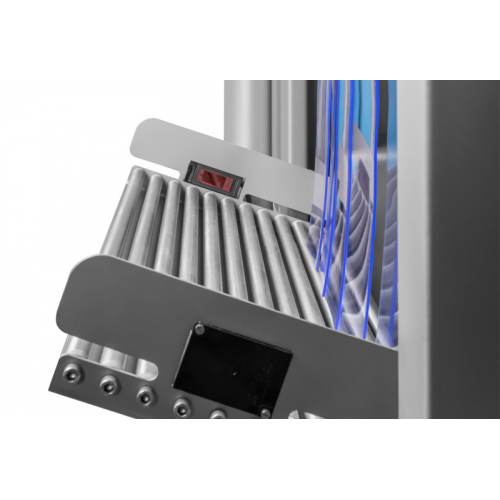

- Submersible and easily removable conveyor belt.
- Independent cycle operation, it can be adapted to any vacuum packaging machine with automatic discharge.
- Construction 100x100 in stainless steel Aisi304.
- Hermetic electrical panel. Components of first brands.
- Water heating by electrical heating elements
- Possibility of manufacturing the machine with two built-in water heating systems.
- Quick water extraction (2 "faucet).
- Easy cleaning.
- Minimal maintenance.
Technical Data:
External dimensions: 1420 x 1050 x 1800 mm
Inner dimensions: 1145 x 600 x 418 mm
Immersion depth: 300 mm
Pneumatic connection: 380V 3F (220V)
Pneumatic connection 6 bar
Power: 33 Kw
