Ruhle High Tech Tumbler MPR 150/ MPR 220

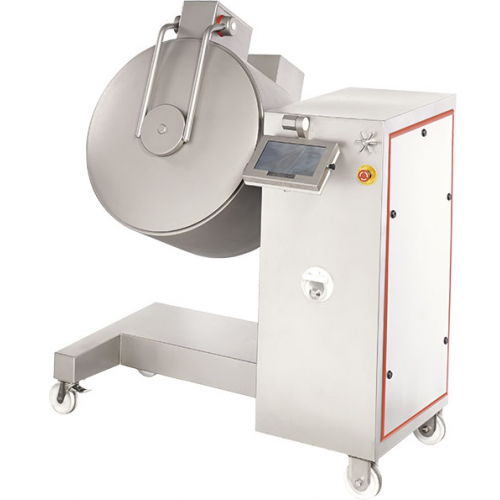

Ruhle High Tech Tumbler MPR 150

MPR 150 has a 150 lt container and can hold about 110 kg of meat. It is perfectly equipped for tasks from cooling to vacuum treatment to variable arm speeds for achieving perfect results. The secret of this success is in its control technology, reflecting decades of experience. The High Tech Tumbler use very little floor space and is equipped with a High Tech system, that leads to better products, more creativity in even shorter processing times. A multitude of electronic helpers with a highly flexible computer technology produce the four process functions tumbling, mixing, marinating and salting. Each one of these functions make novel and better product qualities possible. Feeder system that guarantee shorter working times and better quality.

Networked tablet PC control

The Original Rühle-MPR can be controlled by any tablet or smartphone. Recipes can be created intuitively, and everyday tasks are easily facilitated by a smaller control interface. Your own data can be stored safely using cloud software, which like the control app can be reloaded at any time.

Integrated direct-cooling system for an accurate temperature control

The fast responding and energy saving cooling system ensures the optimum processing temperature setting of -2° C right from the start, resulting in better quality and higher yields.

Variable speed control for optimum movement

Each product is different from the next and so is the required movement of the corresponding material. That’s why the variable speed control range from 1 rpm to 50 rpm leads to the best quality for each individual product.

High capacity vacuum system with aeration for even better results

The best pressure conditions with 95 % vacuum are achieved through a stainless-steel pipe and together with automatic process intervals lead to a higher quality product.

Automatic container swiveling system which is adaptable

The container position influences the intensity of the working process. That’s why the container moves automatically into the position that’s best for the product.

Tumbling-scraper arm with bayonet catch for the most comfortable control

Even slippery hands can disconnect or insert the tumbling arm with a jolt. And because the scraper is easy detachable there are always ideal hygiene conditions. The tumbling arm is shaped in a way that guarantees gentle action on the meat and sensitive materials and, with a range of 1 to 50 rpm, allows all kinds of processes. The scraper supplements these properties with perfect scraping of all container surfaces, so that abrasion does not start at all.

Note: The Single scraper arm always comes with the machine, this is a vital part. It is always in. Double Scraper Arm can also be used instead of the single scraper arm.

The small inner plough mixing arm is for mixing product such as minced meat. If this is used, the single scraper arm (or double scraper arm) is still used.

Technical Details:

• Container Size: 150 L
• Filling Capacity: 115 L
• Width of Machine: 1200 mm
• Length of Machine: 800 mm - 1000 mm
• Height of Machine: 1700 mm - 2100 mm
• Weight of the Machine: 610 kg
• Undercarriage: 4 Wheels
• Coolant: R 404
• Variable arm drive unit: 0-50 U/min
• High Vacuum System: 0-95 %

Ruhle HighTech Tumbler MPR 220

The intelligent performance-talent

The HighTech Tumbler use very little floor space and is equipped with a HighTech system, that leads to better products, more creativity in even shorter processing times. A multitude of electronic helpers with a highly flexible computer technology produce the four process functions tumbling, mixing, marinating and salting. Each one of these functions make novel and better product qualities possible.

Technical Details

Container Size:	220 l
Filling capacity:	160 l
Width of machine:	1200 mm
Length of machine:	800 mm - 1200 mm

Height of machine:	1700 mm - 2100 mm
Connected load:	400 V / 3 kW / 16 A
Weight of machine:	640 kg
Undercarriage:	4 Rollen/Wheels
Coolant:	R 404
Variable arm drive unit:	0 - 50 U/min
High vacuum system:	0 - 95 %

Direct cooling

A very strong cooling unit leads the coolant directly to the container which is perfectly insulated on all sides. These conditions allow for a very fast temperature regulation and a very precise adaptation to all temperature requirements. This and a little bit of High Tech control make new product qualities possible.

Flexible Programming

Twelve parameters are easily accessible at any stages. Recipes can be created intuitively, and everyday tasks are easily facilitated by a smaller control interface. All made possible by perfect software and reliable hardware.

Mixing and kneeding

The automatic swingeing process container with a large diameter, a revolution range up to 50 rpm and a gently kneeding mixing arm. These are the best conditions to solve all mixing tasks with perfect results, from seafood salad to coarse Bratwurst mince and Döner Kebap.

Standard carriage size

There is so much space under the process container, that all sizes of Euro boxes and up to 200 litre standard carriages can be positioned underneath. This makes complete and comfortable discharging possible without product falling to the floor. And because the boxes and carriages stand underneath the machine and not in front of it, you can reach deep inside the container without any problems.

The scraping arm

The tumbling arm is shaped in a way that guarantees gentle action on the meat and sensitive materials and, with a range of 0 to 50 rpm, allows all kinds of processes. The scraper supplements these properties with perfect scraping of all container surfaces, so that abrasion doesn’t start at all.

Automatic movements

The container lid is moved fully automatic or with the push of a button.The process container moves fully automatic or with a push of a button. This not only makes work child’s play, but the process programs guarantee a process in always the right container position. This is very important, because each container position has a different process intensity.

Equipment

• 100% container insulation
• Swivel locking lid
• Swiveling the container
• Direct cooling system
• Sterilization system 90%
• Computer control Touch PC
• Bayonet arm attachment
• Scraper-pressure attachment
• CE/GS test certificate

Accessories

     Double Scraper - Accessory

   Plough Mixing Arm

  Scraper Arm
