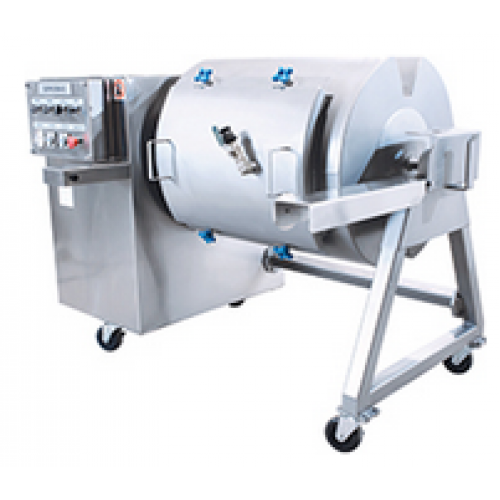

Vacuum Tumblers ET-3
Basic Features:
- Stainless-steel welded construction: frame, drum, accessories, etc.
- Standard drain for sanitation
- Units mounted on 4” (102 mm) wheels for ET-3, ET-5 and adjustable legs for the ET-10
- Bolted frame assembly
- Direct drive for ET-3, ET-5 and chains or gears for the ET-10
- 1/2 Hp motor for driving system for ET-3, ET-5 and 1 Hp for the ET-10
- Forward and Reverse jog for easy loading and unloading
- Quick release fitting for vacuum connection
- Water separator for pump protection
- Easy cleaning
- Photo electric safety switch in front of machine
- Crate
Technical Specifications:
| Marinating Capacity | 300 lbs. | |

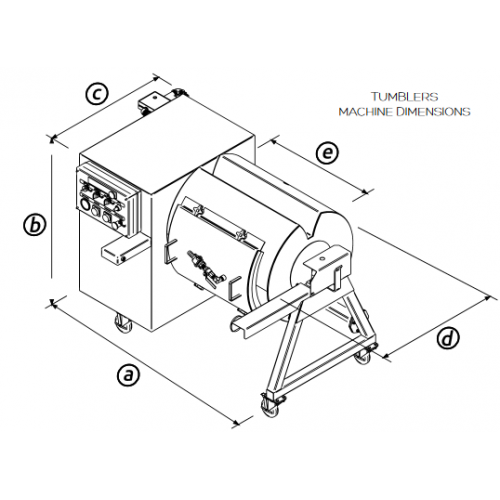

| Machine Dimensions | Width "A" | 64.25" |
| Height "B" | 41" | |
| Height(including lifting device) "C" | 52.25" | |
| Depth "D" | 40.75" | |
| Cylinder diameter "E" | 23.5" | |
| Cylinder width "F" | 28.75" | |
| Power Supply | Std | 120V 1Ph 60Hz |
| Pump Capacity | 20 m³ 0.9kW | |
| Microprocessor | MC-40 |
