Gaser Mixer Grinder 95L
TECHNICAL SPECIFICATIONS
- Made in stainless steel.
- Cutting system: Enterprise 32 (simple cut) Standard / Unger 98 (simple, double and triple cut) optional.
- Mincer motor power: 4 HP (3,00 Kw).
- Mixer motor power: 1,75 HP (1,30 Kw).
- Motor: 230V 60Hz 3Ph.
- Transmission: gears in oil.
- Provided with digital programmer with mixing-kneading cycles and mouth protector with micro.
- Production: first minced 1.500 kg/h approx.
- Capacity in litres: 95 L.
- Capacity in Kgs: 65kg. approx.
- Weight: 230kg.
- Base dimensions: 82 x 54 cm.
- Total dimensions: 112 x 63 x 156 cm.

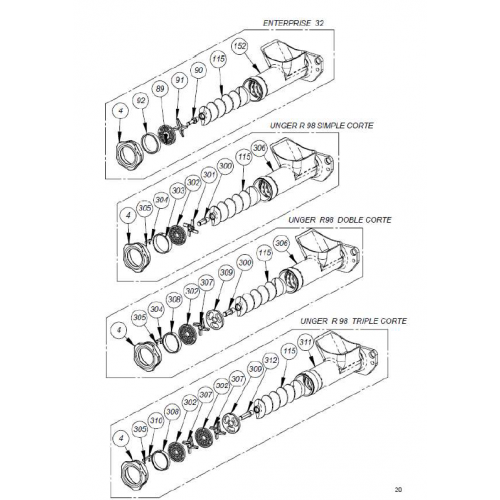

Grinding System:
Plate holes goes from Ø3mm to Ø22mm
From 3mm to 6mm they are available in a scale of 0,5mm, for example 3,5mm, 4mm, until Ø6mm
From 6mm to 22mm they are available in a scale of 2mm, for example, Ø8mm, Ø10mm, until Ø22mm.
Note: Please confirm the plates hole size based on selected grinding system
