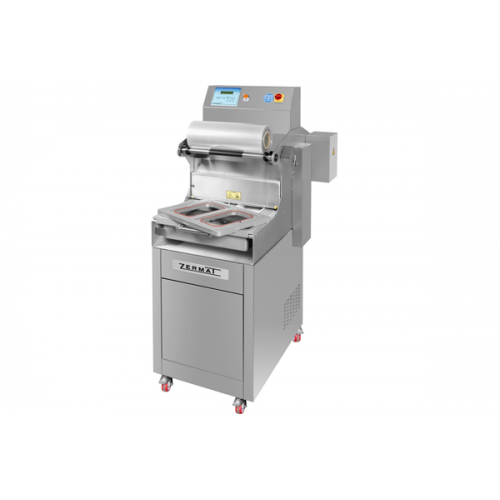

Semi-automatic Tray Sealer TB-2

Zermat Semi Automatic Tray Sealer TB-2

Equipment for the packaging of trays with vacuum + gas injection

Characteristics:

• Robustness and reliability.
• Interchangeable dies in a few minutes.
• Compact and ergonomic design.
• Construction in stainless steel and anodized aluminum.
• Sensor vacuum control.
• Very compact equipment, it needs minimal space.
• Vacuum pump integrated inside the cabinet.
• Control panel with storable programs.
• Programmable vacuum level and percentage of gas injection.
• Perimeter cut of the top film in the tray contour.
• Manufacture of dies adequate to each tray.
• Optional sealing system with film flap for easy-open.
• Easy and intuitive control panel.
• Simple and robust machine with ergonomic design for the user.
• 10 storable programs.
• Integrated system for automatic winding and tension of the top film.
• Sealing time control (seconds) and adjustable die temperature.
• Control panel with stop button to interrupt the cycle (with or without sealing).
• Film reel-picker arm on the back. This tightens the film at the time of sealing for a better finish.

* This equipment requires electrical connection

Options:

• Extra dies to work in different formats (as required or per-designed).
• Inlet air filter unit.
• 50lts compressor. Special vacuum pumps.

Technical Data:

• External dimensions:630 x 980 x 1.490 mm
• Max. tray dimensions to be packed: 1/2 Gr. 325 x 265 x 115 mm.
• Power: 2’3 kw
• Vacuum pump: Busch 40 m3/h (optional 63m3/h - 100m3/h)
• Weight: 235 Kg
• Electrical Connection: 3F - 220V
