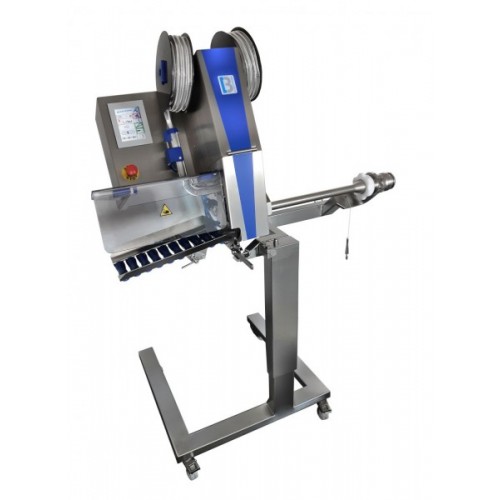

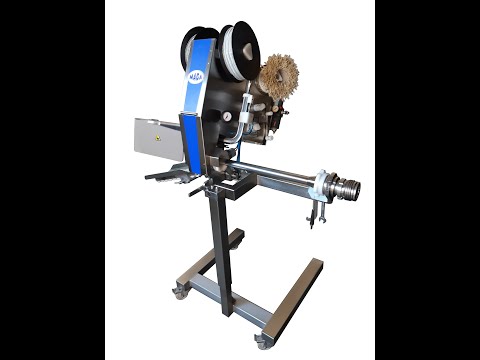

Automatic Double Clipper BDC-700 AM



Automatic Double Clipper BDC-700 AM

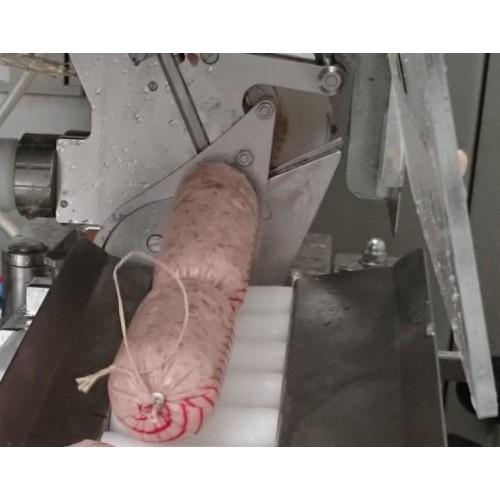

The double automatic clipping machine is a universal and efficient machine for both small and large processing plants. As it uses S700 clips it is perfect for closure of all casing types.

The machine is compatible with every stuffer equipped with the portion cutter and communication line. The clipper sends a signal to start feeding of the stuffing, and then the stuffer sends back the signal of the portion end and clipping is made.

Automatic clipper BDC-700 AM has two types of clip closure adjustment and thus the machine can be very precisely set even for delicate casings.



Adjustment methods:

• mechanical (conventional hard bumper) with an innovative knob
• using the pressure of the air closing the clips – the parameter is set on the control panel

The machine is controlled using a touch panel on which user functions are enabled and the machine servicing inspection can be performed.

The panel also allows the operator to control the number of portions produced and to set key operation parameters

Technical parameters:

1. Diameters of casings to be clipped 30-140 mm (depending on the funnel used, brake and type of the casing and stuffing).
2. Working air pressure of 6.0 bar
3. Compressed air consumption of 15 l/cycle (depending on the clipping speed – minimum 550 l/min)
4. Capacity of clip containers. 2 spools of 2700-3600 clips (depending on the clip size)
5. Clip type S 735, 740, 744, of various hardness.
6. Machine dimensions: 1200 x 720 x 1550 mm (width x depth x height)
7. Net weight: 65 kg.
8. Capacity 30-40 cycles per minute (depending on parameters set and correct preparation of the compressed air connection)

Standard accessories:

• Automatic cutting of the casing between clips
• Additional elements to adjust the knife to make it easy to have the ends clean
• Manual adjustment of the clip closure
• Programmable adjustment of the clip closure
• Automatic loop feeder
• Automatic clip feeder
• Adjustable tray on rollers for easy transport of the portion
• Casing end detector
• 1 set of the stuffer and the brake
• 1 set of special spanners
• Operation and maintenance manual
• Carriage with turning wheels
• Compressed air preparation station

Additional accessories:

• Automatic string dispenser
• Additional stuffer and break set with a diameter of 20-45 mm
