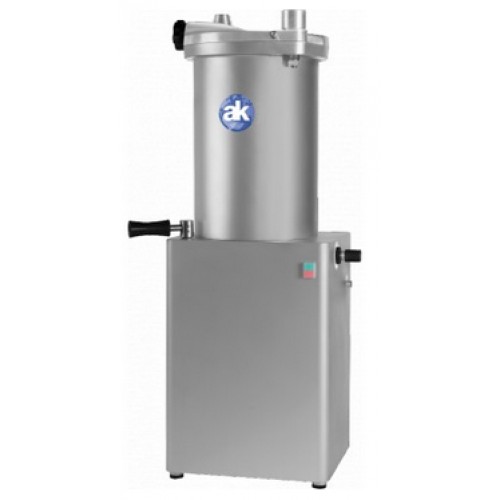

AK-RAMON SC-40 Star Hydraulic Piston Filler
Features
- Totally constructed with AISI 304 stainless steel, including lid and piston.
- Independent oil tank with AISI 304 stainless steel.
- Equipped with pressure gauge.
- Equipped with speed regulator.
- Automatic decompression of the piston to prevent the mass comes out.
- Bottom of the cylinder made of AISI 304 stainless steel, without any crew for easy cleaning
- Bank and cylinder completely sealed together.
- Knee lever to raise and lower the piston .
- AISI 304 stainless steel nozzles Ø 12, 20 & 30mm. (other Ø on request).
- Ideal machine height to work ergonomically.
- Easy cleaning.
Specifications
| Cylinder Capacity | 40 liters |
| Three Phase motor power hP/kW | 1.5/1.1 |
| Single Phase motor power hP/kW | 1.5/1.1 |
| Machine Weight | 410 lbs |
| Shipping Dimension | 560 x 660 x 1590 mm |
| Shipping Weight | 430 lbs |
