Shrink Tunnel TR-8A

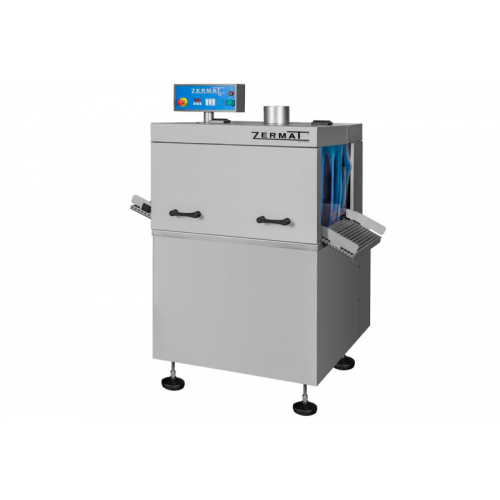

Zermat Shrink Tunnel TR-8A

Robust construction in stainless Steel. Control panel with 20 programs. Progressive air inlet -softair. Sealing time control. Easy maintenance.

Characteristics:

• Automatic working system.
• Independent operation.
• Automatic water inlet with level detector.
• Submersible roller tray, movement in 3 positions for reception-dipping-expulsion of the bags.

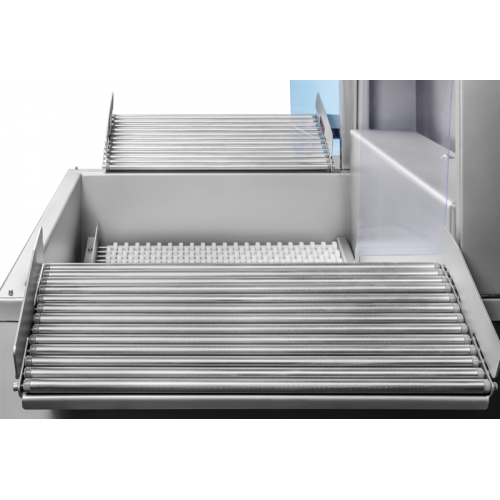

• Roller trays at the entrance and exit of bags.
• Programmable water temperature up to 92º

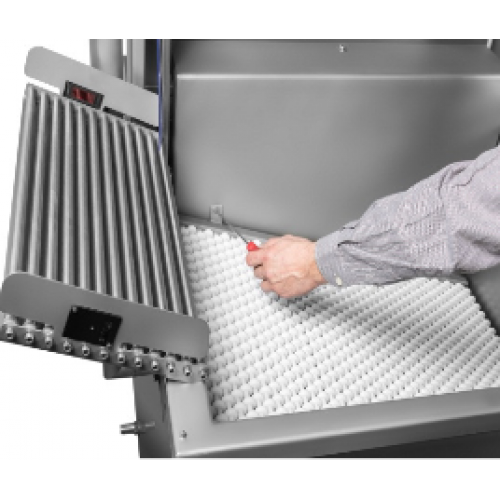

• Easily removable inner tray for access to cleaning / maintenance.
• Programmable water temperature and immersion times.
• Control panel with 20 editable programs.
• Adjustable work height.
• Maximum support 30 kg
• Retractable tank synchronization with most packaging lines, reception from adjustable packaging machine, and ejection to automatic drying tunnel.

Options:

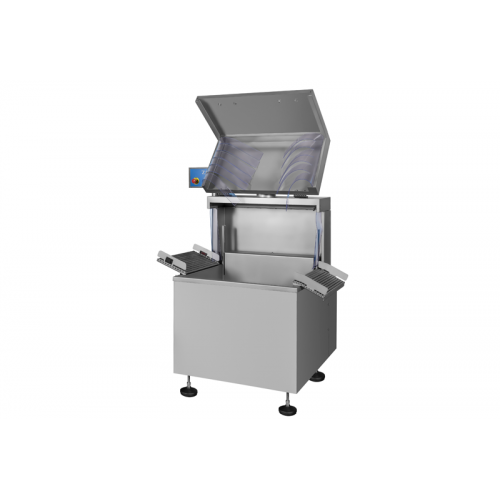

• Automatic lid in continuous mode or operable by "hands-free" system with detector sensor.
• Equipment with automated bag unloading.
• Retractable tank synchronize with most packaging lines, reception from adjustable packaging machine, and ejection to automatic drying tunnel.
• ​Equipment designed for integration into automatic packaging lines.
• ​Minimal maintenance.
• ​For the best adaptation to each production line, the equipment can be produced with the work direction for loading-unloading of the products from right to left (standard) or in the opposite direction.
• ​Drying system by air knife at room temperature, connected to a high power turbine.

Technical Data:

External dimensions: 1170 x 1050 x 1800 mm
Inner dimensions: 800 x 600 x 418 mm
immersion depth: 250 mm
Electric connection: 380V 3F (220V)
Pneumatic connection: 6 bar
Power: 22 Kw
