Meat Mixer ML Z-type Arm

Z-type Open Mixer

This mixer is used for mixing force meat in the production of cold cuts, semi-prepared food, canned food, vegetables,fruits, sauces, etc.
This device is equipped with two counter-rotating paddle mixers powered by one high power electrical engine with a chain transmission.The machine is entirely made of acid-resistant steel or other materials approved for contact with food.

The unique shape of the paddle mixer chamber prevents the deposition of leftover products, while also facilitating unloading and the maintenance of cleanliness.
The paddle mixer is designed for operation with standard meat stuffing trolleys with a capacity of 200 liters.In accordance, offer paddle mixers in a number of configurations and options, always adapting the product to the customer’s needs.



Specifications

Model	Capacity	Power	Engine Power	Unloading with Trolley
ML-200	200 L	230V 60Hz 3 Ph	5 kW	Standard 200 L trolley
ML-300	300 L	230V 60Hz 3 Ph	5 kW	Standard 200 L trolley
ML-400	400 L	230V 60Hz 3 Ph	7.5 kW	Standard 200 L trolley
ML-600	600 L	230V 60Hz 3 Ph	11 kW	Standard 300 L trolley
ML-800	800 L	230V 60Hz 3 Ph	18.5 kW	Standard 200 L trolley
ML-1000	1000 L	230V 60Hz 3 Ph	24 kW	Standard 200 L trolley

Note: Power of the machine can be changed based on customer requirement

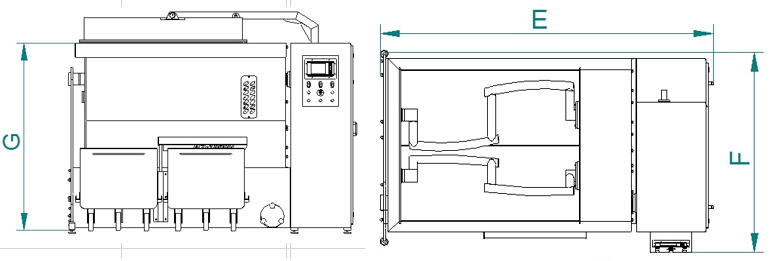

Measurements of Machine

Capacity	Length (E)	Width (F)	Height (G)
200 L	1600	900	1200
300 L	1650	950	1250
400 L	1930	1260	1440
600 L	2255	1260	1470
800 L	2330	1360	1520
1000 L	2430	1460	1570





Measurements of Bowl

Capacity	Length (A)	Width (B)	Depth (C)	Mixer Radius (R)
200 L	800	650	300	185
300 L	850	700	300	220
400 L	900	900	350	262
600 L	1125	900	387	262
800 L	1200	1000	400	330
1000 L	1300	1100	450	330
