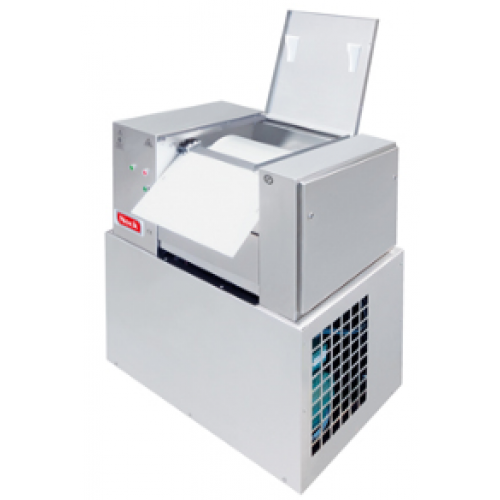

Nock NRE 800 Scale Ice Maker
Scale Ice Maker with daily performance of 800 kg scale ice
Features
- scale ice maker with a daily performance of approx. 800 kg scale ice in 24 hours
- machine complete with evaporator and refrigeration aggregate
- horizontal rotating evaporator
- separation of aggregate from evaporator and tank by construction
- thus very easy daily cleaning and disinfection with high pressure and foam as with other food processing machines, without demounting the stainless-steel water tank
- ice temperature approx. minus 8°C
- thickness of the scales approx. 2 mm
- stainless-steel casing
Standard equipment
- complete machine with integrated, air-cooled refrigeration aggregate (Bitzer)
- refrigerant R449A
- stainless-steel casing
Options
- underframe
- version without aggregate (type NRE / SK)
| Technical data NRE 800 | |
|---|---|
| ice output | approx. 800 kg scale ice / 24 hours (at +25°C ambient temperature and +15°C water temperature) |
| refrigeration | air |
| refrigerant | R449A |
| permitted ambient temperature | +6°C < t < +38°C |
| dimension W x H x D (without optional under frame) | 1100 x 1400 x 1000 mm |
| weight | 320 kg |
| water connection | ¾“ external thread, min. 0.5 bar |
| electric connection | 3 AC - 400 V - 50 Hz other voltages upon request |
| electrical performance | 4.1 kW |
