Wednesday, 10 February 2021

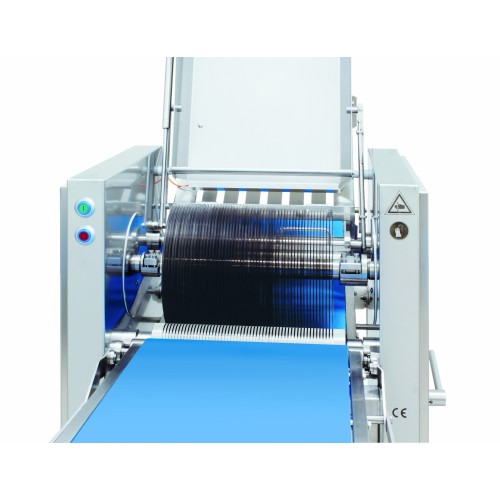

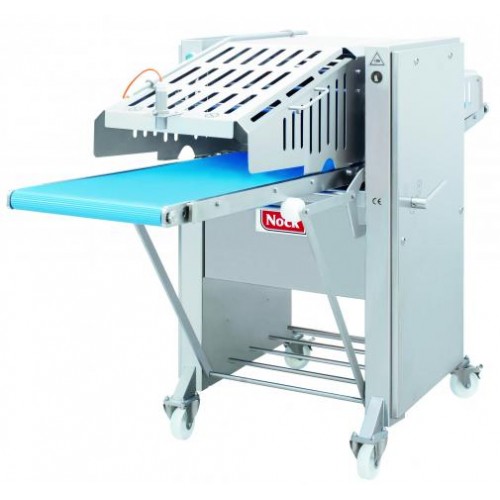

Nock Cortex CB 598 Jerky Slicer Circular blade cutting machine

Nock Cortex CB 598 Jerky Slicer Circular blade cutting machine



Special cutting geometry to slice thin slices from high, fresh meat pieces, e.g. for beef jerky, pork jerky, biltong, milanesa, escalopes, roulades, etc.

Features and application range

  1. with infeed conveyor (1170x490 mm)
  2. with discharge conveyor (1170x490 mm)
  3. diameter of blade 300 mm
  4. with blade shaft, precision-spacer ring
  5. with scraper plate
  6. with lift out device for blade shaft
  7. with protective blade cover
  8. cutting width: 380 mm
  9. cutting speed: 18 m/min
  10. max height of product: 70/120 mm

Note: How to select the number of blades for machine?

Cutting width of machine (in mm) divided by distance of blades (in mm)

rounded up = quantity of blades required

when the result is a whole number: then include one extra blade

Provide number of blades needed while placing order.
