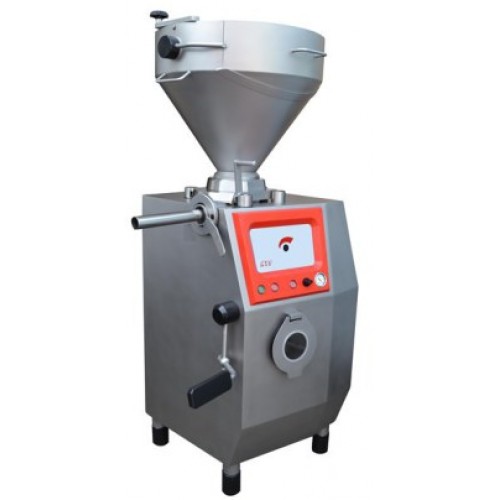

Vacuum Filler HTS 95 G
The Model 95 G provides a strong filling power and is accurate at high inflation pressures the machine is suitable for straight filling all types of sausage. Filling (start / stop) is controlled by toggle. (No automatic portioning possible)
The filling speed is controlled by a potentiometer.
Special features of HTS 95 G:
- compact and robust construction
- efficient operation
- minimal residue
- easy change of products
- ergonomic design
Standard equipment:
- + 95 liters fold-away hopper
- + Rotor number of vanes 10
Performance:
- Filling capacity: 3000 kg/h
- Filling pressure: 35 bar
- Hopper capacity: 95 liters
- Connected load: 4,2kw
Accessories:
3 filling nozzles of choice, tools, grease press, documentation
Vacuum Filler HTS 95
Suitable for filling of all kinds of sausages and for liquid or pasty masses.
For example: soups, sauces, mayonnaises, pies, spreads, hummus, salad, ice cream, etc.
Basic equipment and technical data:
The HTS Touchscreen is very comfortable and easy to operate with its clear symbolic language. With adjustment of the acceleration ramp for main-drive and twist system, weight correction. Statistics will inform about daily, monthly, yearly and total machine output. Safety shutdowns and error messages from the digital drive system are displayed and diagnosed. Possibility to store a special software specified for customer.
- Main-drive: by HTS frequency-drive
- Tilt-able hopper: 95 liters
- Rotor diameter: 120 mm
- Number of vanes: 10,12
- Filling capacity: 3000 kg/h
- Filling pressure: 35 bar
- Portion performance: 400 portion / minute
- Portion weight: 1 - 100.000 g
- Vacuum pump: 16 m3
- Connected load: 4,2 kW
- Net weight: 340 kg
Model Type 1: For filling and portioning
Model Type 2: For filling, portioning and twisting, Twist drive with HTS frequency-drive inclusive 2 special-nozzles for twisting - without holding device
Additional equipment:
- Holding device HV395 For all types of natural casings, collagen casings and peel able cellulose casings inclusive 3 set of twisting nozzles of choice
- Tilt-able hopper 120 liters
- Signal socket
Accessories:
- 3 filling nozzles of choice, tools, grease press, documentation ( comes with the machine)
Note: Filling, portioning and twisting can be done without holding device as well.
Twisting without holding device: The person need some training and very skilled worker to work without it.
Basically holding device is for holding the casings.For specifically plastic casing you need a holding device!
HTS 150 Vacuum Filler
The HTS 150 is a versatile machine designed for individual applications. It is ideally suited for companies which offer a wide range of products and must work efficiently. This is achieved by a specially designed conveying system that guarantees a constant filling process with minimized residual quantities. This is further complemented by a dynamic and powerful servo drive. The hardened materials used for the conveying mechanism meet high requirements and guarantee long durability. Various accessory devices and clip machines can be controlled via an optional signal connector.
Special features of HTS 150:
- efficient operation
- minimal residue
- easy change of products
- high precision of portioning
- compact construction
Standard equipment:
- + 250-liter fold-away hopper
- + Keyboard - control
- + Rotor number of vanes 14
- + signal-socket for attachment or clipping machines
Performance:
- Filling capacity: 3600 kg/h
- Filling pressure: 35 bar
- Hopper capacity: 250 liters
- Portion weight: 1 bis 100.000 g
- Portion 30 g: 450 portion/min
- Portion 70 g: 380 portion/min
- Portion 100 g: 320 portion/min
- Connected load: 7,5 kw
Options:
- Holding device HV395 - for all type of natural casings, collagen casings and peelable cellulose casings
- Mast-type hoisting device
- 150 liter or 350-liter fold-away hopper
- vacuum pump 40m³
Accessories:
3 filling nozzles of choice, tools, grease press, mirror, documentation (comes with the machine)
Note: Filling, portioning and twisting can be done without holding device as well.
Twisting without holding device: The person need some training and very skilled worker to work without it.
Basically holding device is for holding the casings.For specifically plastic casing you need a holding device!
