Nock Circular Blade Cutting Cortex CB 435/4E HVC

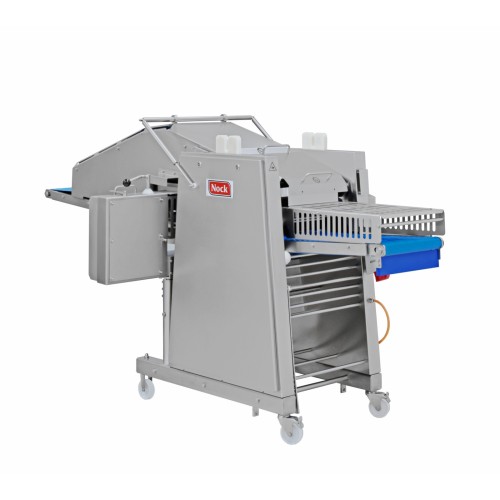

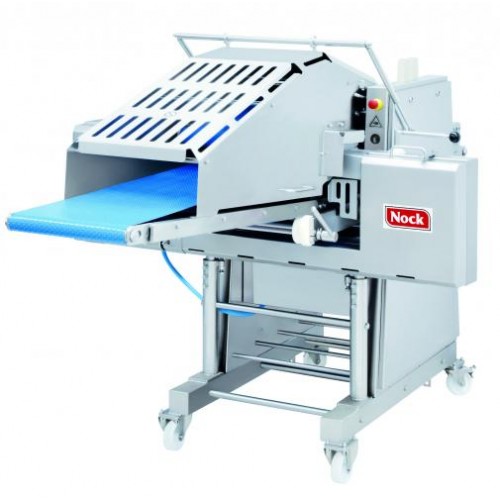

Nock Cortex CB 435/4E HVC Horizontal Vertical Circular blade cutting machine

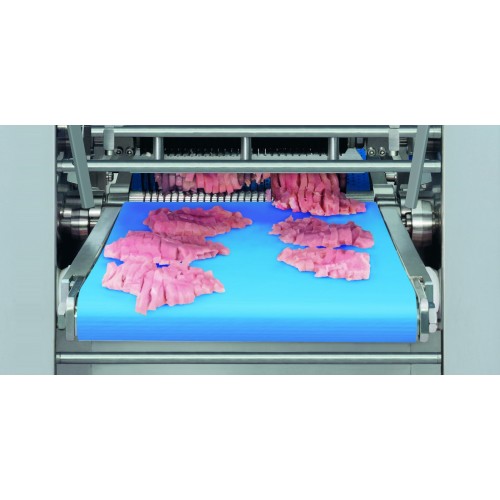

Cutting-machine with band blade for 1 horizontal cut and circular blade cutting unit for vertical cuts.

Features and application range

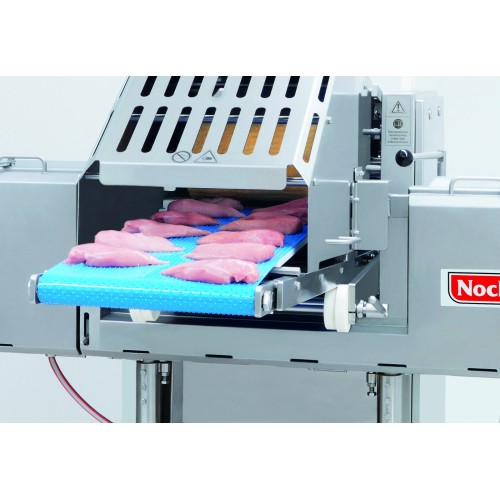

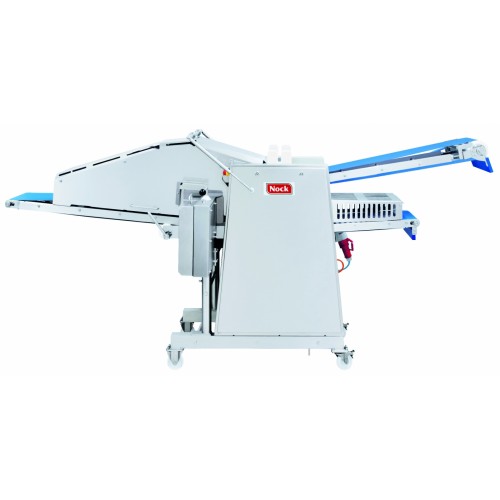

  1. with infeed conveyor
  2. with discharge conveyor
  3. safety cover with gas pressure spring
  4. with blade shaft, precision-spacer ring
  5. with scraper plate
  6. with lift out device for blade shaft
  7. with protective blade cover
  8. belt width: 370 mm
  9. operational width of band blade: 380 mm
  10. circular blade cutting roller: 300 mm
  11. diameter of blades: 200 mm
  12. cutting speed: 25 m/min
  13. max height of product: 40 mm

Note: How to select the number of blades for machine?

Cutting width of machine (in mm) divided by distance of blades (in mm)

rounded up = quantity of blades required

when the result is a whole number: then include one extra blade

Provide number of blades needed while placing order.
