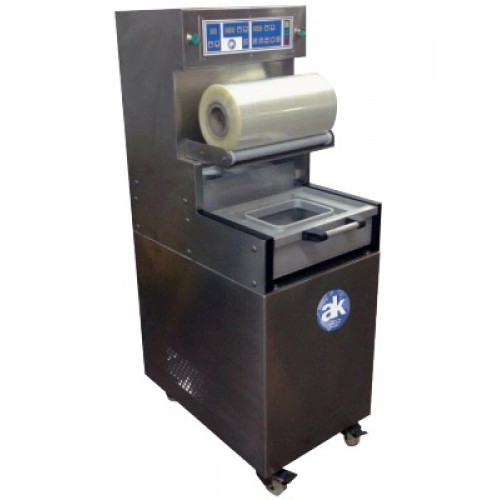

AK Ramon Semi-Automatic Tray Sealer TS-550

 AK Ramon Semi-Automatic Tray Sealer TS-550



Technical information

• Stainless steel construction.
• Die set in anodized aluminum.
• Automatic or Semi-automatic tray sealer.
• 25m3/h vacuum pump.
• Gas flushing entrance allows M.A.P. system (modified atmosphere packaging).
• Digital electronic control panel with 99 memory positions.
• Automatic sealing system.
• Automatic film feed.
• Compact and robust model.
• Fast heating of the selected temperature.
• Simple use machine.
• Allows working with different trays materials types, PP, PET, ALUMINUM…
• Equipped with wheels for easy displacement.
• Air compressor required for working.
• Machine works in three phase.
• Maximum sealing surface: 380x265mm.
• Film roll width: 430mm.
• Power: 1,500W.

Standard die set

1. Standard die set with profile cut:

• 1/8 GN (168x130mm) - 4 cavities.
• 1/4 GN (160x260mm) - 2 cavities.
• 1/2 GN (320x260mm) - 1 cavity.

Any type of special die set can be made according to the customer trays.

2. Standard die set straight cut, not profile cut

• 1/8 GN (168x130mm) - 4 cavities.
• 1/4 GN (160x260mm) - 2 cavities.
• 1/2 GN (320x260mm) - 1 cavity.

Any type of special die set can be made according to the customer trays.

Options

• 40m3/h Busch pump.
• 40m3/h oxygen Busch pump.
• Automatic tray holder drawer and automatic film collector (for molds with cutting profile).
• 6L Silent air compressor.
