Pneumatic Stretch Clipper

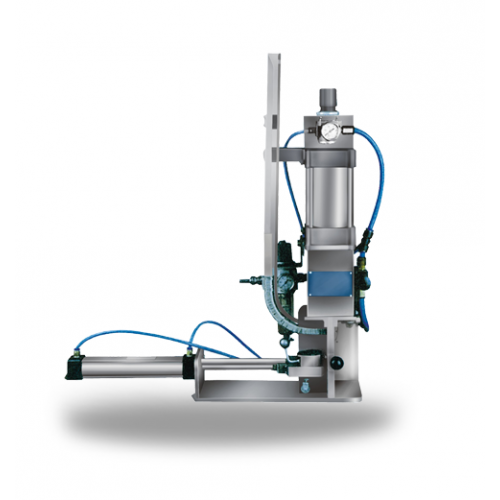

Pneumatic Stretch Clipper

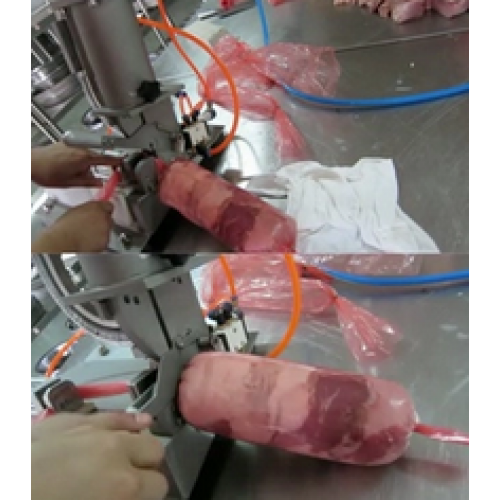

This Clipper is designed for pressing and sealing meat products into pre-fabricated casing sections.

Suitable for further processed applications like rolled and boiled ham, bacon, turkey, and chicken.

High pressure from a pneumatic clamping device ensures tight filling with no air pockets.

This machine provides a firm, balanced structure and finished product display.



Technical Specifications:

• Semi Automatic
• Production Capacity: 10 times / minute
• Flat diameter of the casing: 70mm-140mm
• Types of Clips: U-Shaped 801 and 810
• Input air pressure: 0.8Mpa
• Rated air pressure: 0.4-0.6Mpa
• Dimensions: 900×420×830 mm

 Please see below Specification of Clips suitable for Pneumatic Stretch Clipper

Model	Outer Width	Height	Wire Diameter	Inner Width	Inner Height	Pcs/carton	Carton Size	Carton Weight
810	19mm	18mm	3*3.5mm	12mm	14.6mm	18000	29 x 26 x 25 inches	18.1 Kg
801	17.8mm	18.6mm	2.65*3mm	12mm	16mm	19200	29 x 26 x 25 inches	15.55 kg

How to Measure Clip?

Note: Sold By Carton Only
