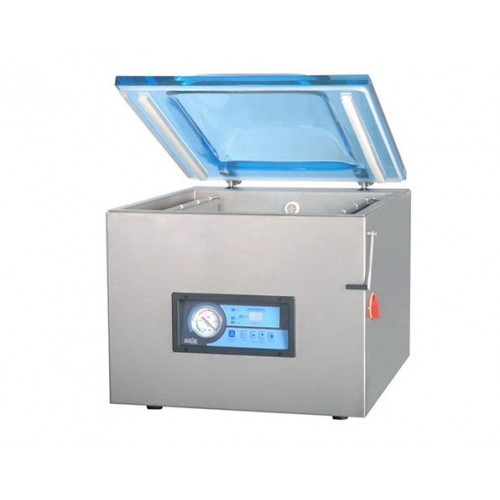

Single Chamber Vacuum Packaging Machine - Tabletop

Single Chamber Vacuum Packaging Machine



This tabletop vacuum packaging machine possesses the advantages of superior functions, easy operation, simple maintenance and wide applications.

Made with SUS304 stainless steel. It can pack grain, food, fruits, seed, medicines, any liquid, powder or paste.

CM Machine Services proud to bring this top quality machine, tried and tested by our professional technicians.

Features:

• Fully digital control panel with emergency cycle stop button.
• Pressing emergency stop button allows to stop the machine in between the cycle and return to standby state.
• Controller has ability to memorize 5 programs.
• The lid is food grade plastic, transparent blue tinted and dome height is 50mm. This allows user to easily monitor the whole vacuum process.
• Another great feature of this machine is the seal bar technology, which is wireless seal bars. This allows for easy maintenance.
• Seal bar comes with 2 options: single wire of 10mm wide or double wire of 3mm wide.
• Seal bar configuration: Two side sealing or one side sealing
• Gas flush option is available in order to keep the products fresh.

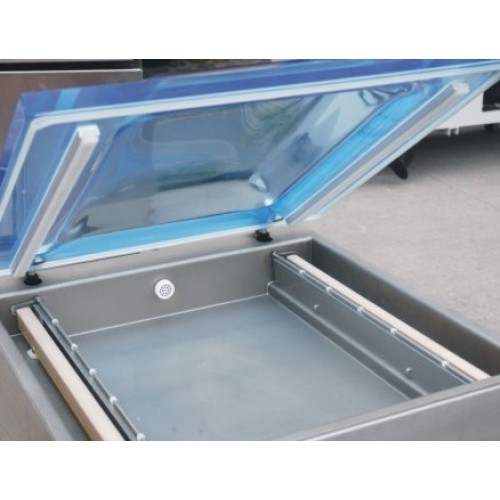

• The vacuum chamber could be added with insert plate for products with different heights to improve the vacuum efficiency. Thickness is 20mm each insert plate.
• The machine comes with standard Rotary Vane Vacuum Pump. Upgrade to Busch pump can be installed as per customers request with extra cost.
• Machine comes with service kit which include seal wire, seal bar tape, lid bar tape, oil for pump and screw driver.
• Machine comes with professional operational manual.
• One year manufacturer warranty

Technical Specification:

• Voltage: 110V 60Hz 1Ph
• Motor Power: 900 W
• Sealing Power: 600 W
• Ultimate Vacuum Pressure: 1 Kpa
• Chamber Dimension: 550x550x140 mm (LxWxH)
• Chamber Height (90mm) + Dome Lid Height (50mm) = 140mm
• Thickness of lid: 25.2 mm
• Distance between Seal Bar: 455mm
• Length of Seal Bar: 510mm
• Seal Bar Wire Width (Standard-Single Sealing): 10mm
• Seal Bar Wire Width (Optional-Double Sealing): 3mm
• Standard Rotary Vane Vacuum Pump capacity: 20 m³/h - (option to upgrade to Busch pump.)
• Machine Dimension: 600x650x500 mm (LxWxH)
• Machine Weight: 91 kg

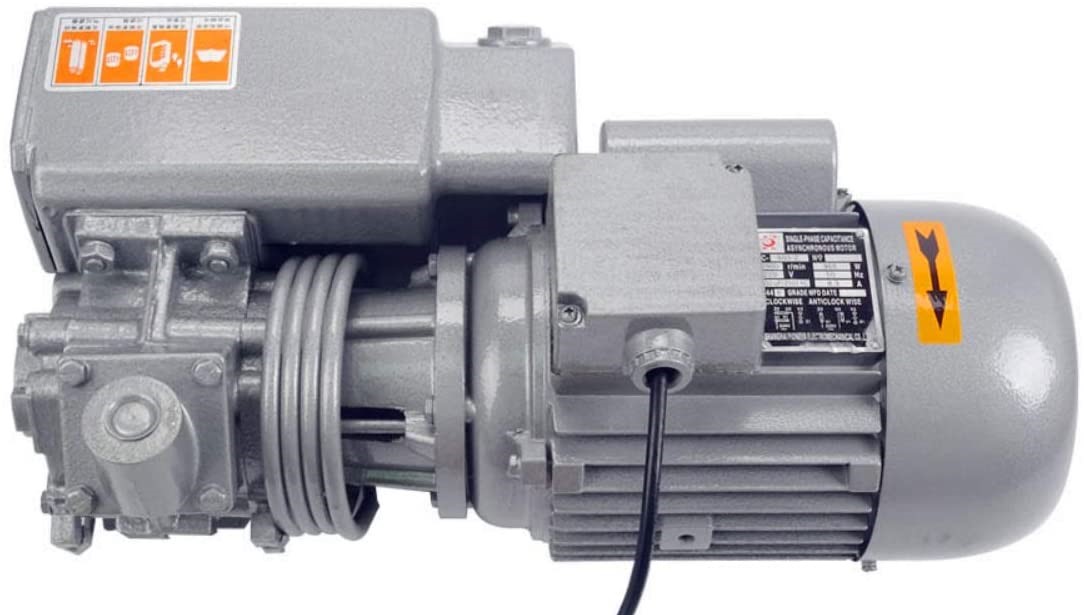

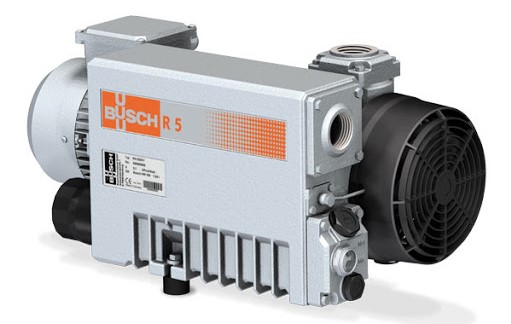

Standard - Rotary Vane Vacuum Pump	Option to upgrade - Busch Pump
