Automatic Skewer Machine SK-5000 and SK-8000



Gaser SK-5000 Automatic Skewer Machine

Technical Characteristics:

• Completely autonomous machine.
• Made of stainless steel.
• Produces up to 1500 units / hour
• For skewers of Ø3.8mm and from 120 mm to 300mm length
• Adjustable skewer length and but only straight skewers
• Automatic cleaning
• Pneumatic operation at 6 bar (kg/cm²)
• Air consumption 20 liters / minute
• Electrical power: 400W
• Electric current 230V, 50/60Hz
• Dimensions: 1305 × 1130 × 1320 mm
• Net weight: 120 kg

The maximum theorical dice that can be used is a 30x30x30mm dice, but machine will be able to adjust if it is little bit bigger like 2-3 more millimeters.

The most common measures are 22 and 30 mm meat dices

Note: Ideal for two employees one on each side



Gaser SK-8000 Automatic Skewer Machine

Technical Characteristics:

• Completely autonomous machine.
• Recommended machine for skewers with various ingredients
• Made of stainless steel.
• Produces up to 1500 units / hour
• For skewers of Ø3.8mm and from 120 mm to 300mm length
• Adjustable skewer length and but only straight skewers
• Automatic cleaning
• Pneumatic operation at 6 bar (kg/cm²)
• Air consumption 20 liters / minute
• Electrical power: 400W
• Electric current 230V, 50/60Hz
• Dimensions: 2100 × 1130 × 1320 mm
• Net weight: 175 kg

The maximum theorical dice that can be used is a 30x30x30mm dice, but machine will be able to adjust if it is little bit bigger like 2-3 more milometers ,

The most common measures are 22 and 30 mm meat dices

Note: Ideal for four employees two on each side.

Because of longer belt allows employees to add more ingredients in cavity according to belt speed

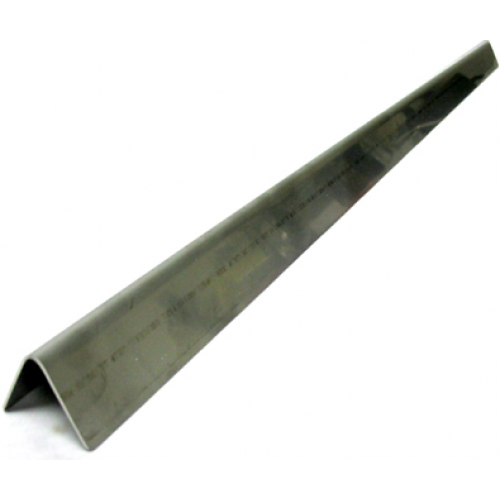

Stainless Steel Smoke Sticks - Various Shapes

Smoke sticks are used within smokehouse chambers that are placed on the smoking carts and trolleys to handle a variety of meat products such as sausages, ham, pepperettes, etc. They allow for the meat products to be hung off them to ensure 100% of air flow is given to speed the smoking and cooking process. CM Machine Services offers top quality stainless steel or heavy-duty aluminum smoke sticks, with the capability of being cut to size upon customer request. Not only do we provide various shapes such as the Bell-Shaped Smoke stick or the V-Shaped, but we also offer a Smoke Stick Washer. This machine will wash the smoke sticks by rotating them within its tunnel chamber. The user has the ability put their own detergent in during the wash process and control the temperature, working similarly to a washing machine found at home. Our company is well known for the fabrication of these pieces due to our reliability and top of the line products.

Meat Flattening Machine 600 mm

Meat Flattening Machine 600 mm Belt Width

This CM600-II meat flattening machine is equipped with 4 pressure rollers to flatten fresh or half frozen meat, that is around -4°C. Extended surface area is responsible for equal cooking time and minimized frying time.

This meat processing equipment is applicable for processing of all kinds of poultry, pork, beef, potato, cheese and fish in thickness less than 30mm.

Based on exceptional connectivity to plant automation, our food processing machine can work together with meat tenderizer to build production line catering to various needs.

Advantages:

• This meat flattening machine has water spraying system to avoid products sticking to conveyor belt.
• Protection system ensures safety of your operators.
• This meat flattening machine is constructed with stainless steel for reliable performance.

Technical Parameters:

• Conveying Speed:        3-15m/min (Variable Frequency Speed Control)
• Belt Width:                   600mm
• Voltage:                       220V 60Hz 3Ph
• Flattening Thickness:   3-30mm
• Motor Power:                1.5kW
• Overall Dimension:      2135×915×1320mm

Single Chamber Vacuum Packaging Machine - Tabletop

Single Chamber Vacuum Packaging Machine



This tabletop vacuum packaging machine possesses the advantages of superior functions, easy operation, simple maintenance and wide applications.

Made with SUS304 stainless steel. It can pack grain, food, fruits, seed, medicines, any liquid, powder or paste.

CM Machine Services proud to bring this top quality machine, tried and tested by our professional technicians.

Features:

• Fully digital control panel with emergency cycle stop button.
• Pressing emergency stop button allows to stop the machine in between the cycle and return to standby state.
• Controller has ability to memorize 5 programs.
• The lid is food grade plastic, transparent blue tinted and dome height is 50mm. This allows user to easily monitor the whole vacuum process.
• Another great feature of this machine is the seal bar technology, which is wireless seal bars. This allows for easy maintenance.
• Seal bar comes with 2 options: single wire of 10mm wide or double wire of 3mm wide.
• Seal bar configuration: Two side sealing or one side sealing
• Gas flush option is available in order to keep the products fresh.
• The vacuum chamber could be added with insert plate for products with different heights to improve the vacuum efficiency. Thickness is 20mm each insert plate.
• The machine comes with standard Rotary Vane Vacuum Pump. Upgrade to Busch pump can be installed as per customers request with extra cost.
• Machine comes with service kit which include seal wire, seal bar tape, lid bar tape, oil for pump and screw driver.
• Machine comes with professional operational manual.
• One year manufacturer warranty

Technical Specification:

• Voltage: 110V 60Hz 1Ph
• Motor Power: 900 W
• Sealing Power: 600 W
• Ultimate Vacuum Pressure: 1 Kpa
• Chamber Dimension: 550x550x140 mm (LxWxH)
• Chamber Height (90mm) + Dome Lid Height (50mm) = 140mm
• Thickness of lid: 25.2 mm
• Distance between Seal Bar: 455mm
• Length of Seal Bar: 510mm
• Seal Bar Wire Width (Standard-Single Sealing): 10mm
• Seal Bar Wire Width (Optional-Double Sealing): 3mm
• Standard Rotary Vane Vacuum Pump capacity: 20 m³/h - (option to upgrade to Busch pump.)
• Machine Dimension: 600x650x500 mm (LxWxH)
• Machine Weight: 91 kg

Standard - Rotary Vane Vacuum Pump	Option to upgrade - Busch Pump



Automatic Digital Meat Flattening Machine

Automatic Digital Meat Flattening Machine 400mm

The machine is widely applied for all poultry, beef, pork, fish and cheese etc. of thickness is less than 30mm.
Fresh or frozen meat is flattened going through two belts rolling towards each other certain thickness to increase the surface appearance of the products.

Thus makes the products to reach the consistency of cooking time and reduce the frying time. It is a professional equipment to produce the Chicken schnitzel, and fish fillet, which are very popular in Today’s market.

The machinery is widely applied for all the poultry, meat, beef, fish potato, cheese and .etc bone meat of thickness less than 30mm.

Features:

• Interface touch screen.
• Detachable conveying belt, easy to clean.
• The flattening thickness can be adjusted automatically.
• Sprinkling device to prevent the products from sticking on the belt.
• Anti-slippery conveyor belt design.
• SIEMENS electric apparatus with CE approved safety protection device.
• Made of stainless steel and engineering plastic, easy to clean and HACCP standard.
• Easy operation and lower maintenance cost.
• Access to the meat tenderizer to realize the continuous production.

Technical Specifications:

• Belt width: 400mm or 600mm

• Belt speed: 3~15m/min adjustable
• Flattening thickness: 5-30mm adjustable
• Power: 3.05kW
• Overall dimension for 400mm: 2300×1400×1500mm
• Overall dimension for 600mm: 2300×1400×1500mm
